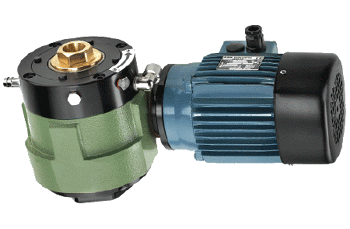

Available in 4 different models in order to cover
the full range of die holder diameters. Ranging
from diameter 38 mm to 100 mm, they can be supplied
with water cooling either direct or indirect.
CFRMD 431
for 2 ~ 5.5 mm wire dia
CFRMD-551
for 5.5 -10 mm wire dia
CFRMD-701
for 10 - 15 mm wire dia
CFRMD-100
for 15 - 20 mm wire dia
• Direct cooling of die (prevents
heat accumulation on wire)
• Providing a perfectly round final wire
• During each passage through the die holder
and on all capstans, the wire is lubricated by continuous
addition of drawing powder or solution
• Increased drawing speed
• Increased die life
• Maintaining lower drawing temperatures
• Reduced machine downtime (due to wire breaks
and die change)
• Easier access for periodical maintenance
• Selection of slow or fast die rotation speeds
• Various installation options
• Single and Double Die applications
• Multi-voltage motors
• Short or Long series steel lubrication box
– suitable for powder or liquid lubrication
