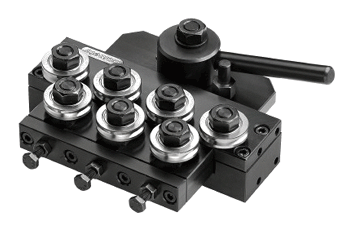

Wire Straightener – AS / AD Type (AS = Single Plane / AD = Dual Plane)
• Mainly used on drawing machines
• Single and dual plane straightener models
• Eccentric roller open/closing device (lever)
• From 5 ~ 13 rollers per group (5, 7, 9, 11, 13) or (5+5, 7+7, 9+9, 11+11,13+13)
• Roller diameters 13 ~ 80 mm (0.5" ~ 3.15")
• Adjustable rollers on the upper row
• Rollers available for light or heavy duty applications
• Model AS/AD for wire R = 60 N/mm² (8400 psi) max. with normal rollers (single or double bearing)
• Model AS/AD - CAW for wire R = 60 N/mm² (8400 psi) to R = 220 N/mm² (313 000 psi) with double roller bearing construction and separate hardened-steel sleeve, 62~63 HrC
• Rollers are standard “V” groove profiles but can be provided with “U” grooves according to customer requirements
• Wire Guide included

Cometo - AD Wire Straighteners




Einfache, effiziente und kostenguenstige Schneideloesungen fuer fast alle Draht-, Kabel- und Rundstabanwendungen


TRAMEV liefert tragbare Geraete fuer verschiedene Zwecke wie Kabelscheren, Ablaengen von Rundtsaeben, Biegen und Richten, Flachband-scheren, Mutter und Schrauben, Lochstanzen. Sehr interessant erscheint das Modell MU165, eine tragbare Schneide-vorrichtung fuer Draehte und Rundstaebe bis 16 mm Durchmesser (5/8).

- more details here...
