Introduction:
Adding to the Cometo manufacturing program, these machines are suitable for the straightening and cutting of material with diameters 0.1 mm – 10 mm. Can accommodate standard round, square, hexagonal and triangular wire profiles (other profiles can be accommodated as well as customized profiles). Suitable for all material types including steel, copper, aluminum, various alloys and more – materials are processed WITHOUT damage to the material surface. Assembled on a sturdy electro welded frame, these MTF machines are designed using a selection of:

- roller straightener’s (various types and sizes)
- three different types of feeder units (AL12 & AL6 models – 3 models in each group)
- two different designs of cutting units (ECM05 electronic type / TAG 10 pneumatic type).

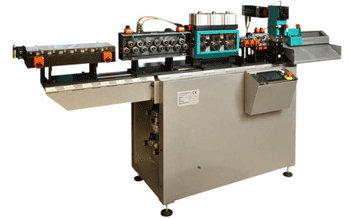

MACHINE FOR THE STRAIGHTENING AND CUTTING
OF WIRES AND PROFILES

Besides optimizing the manufacturing parameters and decreasing delivery times, these systems allow Cometo to offer machines that enable its customers to position the straightener in a random position, before or after the feeder unit, and also be able to replace or interchange it in a very short time frame (minutes) depending on the wire dimension and profile to be produced. Cometo have also developed their own customized powered pay-off (SVO) to accommodate the said straighten & cut machines. These payoffs are suitable for the unwinding of coils up to a maximum diameter of 10 mm – it can also be adapted to other applications and integrated into machinery already in operation. The height from the ground to the coil base is 500 mm or 750 mm. The payoff base has a 1,100 mm diameter platform and reaches a speed of 90 RPM. Maximum load is 1,000kg.

POWERED WIRE PAY-OFF
(SVO) WITH VERTICAL COIL
ROTATION AXIS, LINEAR
DANCER & 1,000 KG COIL
CAPACITY
