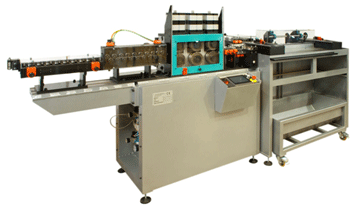

This machine processes aluminum, bronze, stainless steel and carbon steel with diameters 1,2 - 1,6 - 2,0 - 2,4 - 3,2 - 4,0 - 5,0 mm and hard stamps one end or both ends of the welding rods with fixed lengths up to 1,000 mm.

The unit is completely customized with accessories for different kinds of wire.

The pre-determined cutting length in set by means of an external touch-screen connected to an encoder.

Max. production: approx. 90- 100 pc’s/minute with a feed/cut length of 1,000mm.

The pressure of the feed rollers and encoder roller can be adjusted by means of pneumatic pressure devices.

The feed rollers are coated with plastic material. The encoder roller is in hardened steel 63HRC.  Guides and blades are in hardened steel 63HRC (carbide guides available upon customer’s request).

Quick wire-straightener adjusting by means of roller positioning / adjustment indicators providing an economical and accurate way of recording roller positions for all future reproducibility, producing consistent final product every time.  The modular configuration allows a quick change of the composition of the machine – interchangeability of straightener’s and feeder.

The machine is equipped with a fixed jig enabling constant checking of the straightening and cut length of the wire.

Optional - Powered pay-off (SVO).
